Multiple Windows in Selenium Webdriver

There will be times when you will required to perform some testing, where the testing operations open a new browser/tab, testcase may required you to perform some tasks on the newly opened browser window/tab and return back to original window to perform the remaining tasks.

Even if the window/tab is currently on focus but still it is not an active window, so to perform some tasks you need to switch to new browser window/tab in selenium webdriver.

Commands will have effect on base window unless we switch our control to new window/tab.

Previously tab and Windows are two different items, as tabs doesnot had any GU iD. Now developers made tab and windows have GUIDs, so tabs and windows are treated as same in selenium webdriver

Situations when we are likely to deal with multiple windows:

Filling forms may require selecting the date from a separately opened window
Clicking on some link/button can open another window
Handling Advertisement windows

Multiple Windows


multiple-windows-handling-selenium-webdriver Above image depicts multiple browser windows

1. Our Application is opened on Parent/Base window, total number of windows is one

2. When clicking on a link/button our application opens two new windows along with base window, now the total number of windows present is Three (base + child-1 + child-2)

3. Now move to Child-1 window and perform click on a button/link which open another one more window along with child-window, now the total number of windows is 4 (base + child-1 + child-2 + grand child-1)

4. We can perform operation on grand child -1 window and we can close all windows or specific windows.

If we perform above operation manually, we may not find difficulty, but handling above scenario is tricky in selenium webdriver

Get Window Handles in Selenium webdriver

Selenium webdriver provides few methods to handle the multiple windows, let's see what are the methods and their uses.

GU ID:
GU ID abbreviation of Globally Unique Identifier, Every OS generates GU ID for application to identify them uniquely. We will be using this GU ID to handle the multiple browsers, GU ID is numeric string value.


										8589934593



getWindowHandle() :
getWindowHandle method in selenium webdriver returns the current(active) browser's GU ID. It return GU ID as string value.


										driver.getWindowHandle();



getWindowHandle() :
getWindowHandles method in selenium webdriver returns GU ID of all the browsers present at the moment, which are opened by current driver. This method returns GU IDs as Set of String.


										driver.getWindowHandles();



Set Collection in Java : Set is one of the Collection type and it stores the values at random places in memory. We cannot access the values based on the index as Set stores values in random places ( this is one of the major difference between List and Set). You may get wrong values if you try to access values based on the index.

switchTo().window() : switchTo() method in selenium webdriver helps user to switch between windows, frames, elements, alerts. switchTo().window(GU ID) method switches the control from the current browser window to target browser window which has the specified "GU ID".



										driver.switchTo().window(guid);


Create Custom By class Locator in Selenium

Handle simple Two Browser Windows / Tabs

Click the button to Open a new window ( google.com)

Please use firefox as browser to open the link in new window, if you use chrome the link may be opened in new tab rather than new window.

two-windows-example-selenium-webdriver Steps to Handle Two Windows :
1. Open firefox browser and Navigate to http://chercher.tech/java/handle-multiple-windows-tabs-selenium


										WebDriver driver = new FirefoxDriver();
										// set implicit time to 30 seconds
										driver.manage().timeouts().implicitlyWait(30, TimeUnit.SECONDS);
										// navigate to the url
										driver.get("http://chercher.tech/java/handle-multiple-windows-tabs-selenium.php");



2. Get the GU ID of the current (parent) window using getWindowHandle() method present in the selenium webdriver and store the value in a String


										// get the Session id of the Parent
										String parentGUID = driver.getWindowHandle();



3. Click on the Open New Window button, application open new window with google page. Make the selenium webdriver to sleep for 5 seconds, otherwise it may not find the newly opened tab.


										// click the button to open new window
										driver.findElement(By.id("two-window")).click();
										Thread.sleep(5000);



4. Get the GU IDs of the two windows (parent + google), using getWindowHandles() method present in the Selenium webdriver. Store the GU IDs in a Set Collection, this Set will have GU IDs of both parent and Child Browsers


										// get the All the session id of the browsers
										Set allGUID = driver.getWindowHandles();



5. iterate the Set of GUID values, and if the value is parent value skip it if not switch to the new window


										// iterate the values in the set
										for(String guid : allGUID){
											// one enter into if block if the GUID is not equal to parent window's GUID
											if(! guid.equals(parentGUID)){
												//todo
											}
										}



6. Switch to window using switchTo().window() method present in selenium webdriver, pass the GU ID of the child browser to this method.


										// switch to the guid
										driver.switchTo().window(guid);




7. Find the search bar in Google.com and search for "success"


										// search on the google page
										driver.findElement(By.name("q")).sendKeys("success");



Close the Google tab/Window and return to parent tab/browser window


										// close the browser
										driver.close();
										// switch back to the parent window
										driver.switchTo().window(parentGUID);


Complete code for switching window may look like below


										public class TwoWindows {
											public static void main(String[] args) throws InterruptedException {
												// open firefox browser
												System.setProperty("webdriver.gecko.driver", "C:/~/geckodriver.exe");
												WebDriver driver = new FirefoxDriver();
												// set implicit time to 30 seconds
												driver.manage().timeouts().implicitlyWait(30, TimeUnit.SECONDS);
												// navigate to the url
												driver.get("http://chercher.tech/java/handle-multiple-windows-tabs-selenium.php");
												// get the Session id of the Parent
												String parentGUID = driver.getWindowHandle();
												// click the button to open new window
												driver.findElement(By.id("two-window")).click();
												Thread.sleep(5000);
												// get the All the session id of the browsers
												Set allGUID = driver.getWindowHandles();

												// pint the title of th epage
												System.out.println("Page title before Switching : "+ driver.getTitle());
												System.out.println("Total Windows : "+allGUID.size());
												// iterate the values in the set
												for(String guid : allGUID){
													// one enter into if blobk if the GUID is not equal to parent window's GUID
													if(! guid.equals(parentGUID)){
														// switch to the guid
														driver.switchTo().window(guid);
														// break the loop
														break;
													}
												}
												// search on the google page
												driver.findElement(By.name("q")).sendKeys("success");
												// print the title after switching
												System.out.println("Page title after Switching to goolge : "+ driver.getTitle());
												Thread.sleep(5000);
												// close the browser
												driver.close();
												// switch back to the parent window
												driver.switchTo().window(parentGUID);
												// print the title
												System.out.println("Page title after switching back to Parent: "+ driver.getTitle());
											}
										}

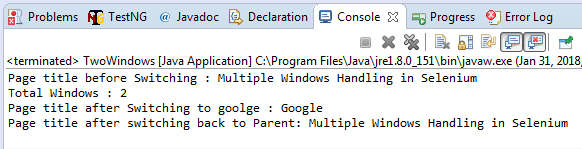

output-two-window-selenium-webdriver

Learn about NoSuchWindowException in selenium

More than Two Window handling

We have handled the two windows in above tutorial by comparing GUID but when we have more than two window we cannot use the same approach. To access the exact page we may need title of the page, based on the title of the page we can differentiate the browser windows in selenium.

Tip : We can use title, url, element reference while switching into new window to ensure that we are switching to the required window. I prefer Tile, url than element



Scenario : Click on the Open 3 New Windows button, it will open three more windows (bing, google, yahoo), now switch to bing and search for "gates". four-windows-example-selenium-webdriver Steps to Handle More than Two Windows :
1. Open firefox browser and Navigate to http://chercher.tech/java/handle-multiple-windows-tabs-selenium

2. Get the GU ID of the current (parent) window using getWindowHandle() method present in the selenium webdriver and store the value in a String

3. Click on the Open 3 New Window button, application open new window with google page. Make the selenium webdriver to sleep for 5 seconds, otherwise it may not find the newly opened tab.

4. Get the GU IDs of the two windows (parent + google + bing + yahoo), using getWindowHandles() method present in the Selenium webdriver. Store the GU IDs in a Set Collection, this Set will have GU IDs of both parent and Child Browsers

5. Now iterate through the Set,switch to first GUID in Set and check the page title contains the keyword "bing".

Complete program for switching multiple windows in selenium webdriver


										public class MoreThanTwoWindows {
											public static void main(String[] args) throws InterruptedException {
												// open firefox browser
													System.setProperty("webdriver.gecko.driver", "C:/~/geckodriver.exe");
													WebDriver driver = new FirefoxDriver();
													// set implicit time to 30 seconds
													driver.manage().timeouts().implicitlyWait(30, TimeUnit.SECONDS);
													// navigate to the url
													driver.get("http://chercher.tech/java/handle-multiple-windows-tabs-selenium.php");
													// get the Session id of the Parent
													String parentGUID = driver.getWindowHandle();
													// click the button to open new window
													driver.findElement(By.id("three-window")).click();
													Thread.sleep(5000);
													// get the All the session id of the browsers
													Set allGUID = driver.getWindowHandles();
													// print number of windows
													System.out.println("Total Windows : "+allGUID.size());
													//iterate through windows
													for(String guid : allGUID){
														driver.switchTo().window(guid);
														// check the title of the page to match with "bing"
														if(driver.getTitle().toLowerCase().contains("bing")){
															driver.findElement(By.className("b_searchbox")).sendKeys("gates");
															Thread.sleep(3000);
															break;
														}
													}
													// close all the windows
													driver.quit();
											}
										}


Take Website Screenshot in selenium

How do developer make the link to open in New Window

Developer can make the link to open in new window using target keyword present in anchor tag <a>, when developer set this value to "_blank", the link will be opened in new windows when user clicks the link.


											// button is nested inside a link
											<a id='two-window' href='http://google.com' target='_blank'><input type='button' value="Open New Window"></a>
											// plain link
											<a id='two-window' href='http://google.com' target='_blank'>Click me</a>



If developer avoids to use target='_blank', browser opens such links in same window. It is recommended not to open the link in new window


										<a id='two-window' href='http://google.com'>Click me</a>


Default Constructor in selenium and Java

Force to open in new Window rather than Tab

There will be situations where we have to open a link in new Window, but later browser donot support opening a url in new window as it is not recommended ( phishing is easy with new windows ).

During such scenarios we can use action class to open the link in new window, by pressing Shift key and to click the link, it opens the link in new window in selenium webdriver.

Steps to open link in a new Window :
1. Open firefox browser and Navigate to http://chercher.tech/java/handle-multiple-windows-tabs-selenium


										// open firefox browser
										System.setProperty("webdriver.gecko.driver", "C:/~/geckodriver.exe");
										WebDriver driver = new FirefoxDriver();



2. Find the above link using id force-new-window and store it in a variable of WebElement type


										// store the element
										WebElement ele = driver.findElement(By.id("force-new-window"));



3. Create a object for Actions class


										// create object for Actions class
										Actions act = new Actions(driver);



4. Call keyDown method from the Actions class object, and pass Keys.SHIFT as parameter

5. Call Click method from the Actions class object, pass stored web element as parameter to this method

6. Use build() method from Actions class object to bind the keyDown and click methods, call the perform method to perform the operations.


										// press the shift key
										act.keyDown(Keys.SHIFT)
										//click the element
										.click(ele)
										// combine the actions
										.build()
										// perform the operations
										.perform();



Complete program for opening a link in new window in selenium webdriver.


										public class OpenNewWindow {
											public static void main(String[] args) throws InterruptedException {
												// open firefox browser
												System.setProperty("webdriver.gecko.driver", "C:/Users/user/Pictures/geckodriver.exe");
												WebDriver driver = new FirefoxDriver();
												// set implicit time to 30 seconds
												driver.manage().timeouts().implicitlyWait(30, TimeUnit.SECONDS);
												// navigate to the url
												driver.get("http://chercher.tech/java/handle-multiple-windows-tabs-selenium.php");
												// get the Session id of the Parent
												String parentGUID = driver.getWindowHandle();
												// store the element
												WebElement ele = driver.findElement(By.id("force-new-window"));
												// create object for Actions class
												Actions act = new Actions(driver);
												// press the shift key
												act.keyDown(Keys.SHIFT)
												//click the element
												.click(ele)
												// combine the actions
												.build()
												// perform the operations
												.perform();
											}
										}


Handle dropdowns in selenium


Join My Facebook Group
Join Group


About Author

Myself KarthiQ, I am the author of this blog, I know ways to write a good article but some how I donot have the skills to make it to reach people, would you like help me to reach more people By sharing this Article in the social media.

Share this Article Facebook
Comment / Suggestion Section
Point our Mistakes and Post Your Suggestions
  • Ashish Bind
    for(String guid : allGUID){

    It is showing error i.e. object type cannot convert into String.
    Please suggest me.
    Reply
    • karthiQ [admin]
      Hi Ashish,

      Could you please share few more lines of code, so it would be easy to solve he problem.
